The Innovative TRAPO Palletizing Robot: Precise and Efficient Palletizing on Euro or Industrial Pallets
The TRAPO robot palletizer sets standards in product handling and productivity to optimize your manufacturing process.
Palletizing, numerous possibilities: Our innovative solution offers a variety of articulated robots and grippers to meet individual requirements.
Reliable Conveyor Technology
The entire process is supported by a reliable roller conveyor. This ensures not only a smooth feed of products but also an organized provision of pallets. Optionally, the supply of empty pallets can be done through a special empty pallet magazine to further optimize the workflow.
Optional: Interlayer Handling
The flexibility of our robot palletizing cell is enhanced by optional interlayer handling. This can be integrated as an additional function of the robot palletizer or implemented through a standalone interlayer handling with interlayer magazine. This function enables precise and efficient interim storage of your products for optimized handling and transport.
The High-Speed Robot System Introduces Itself in Two Variants:

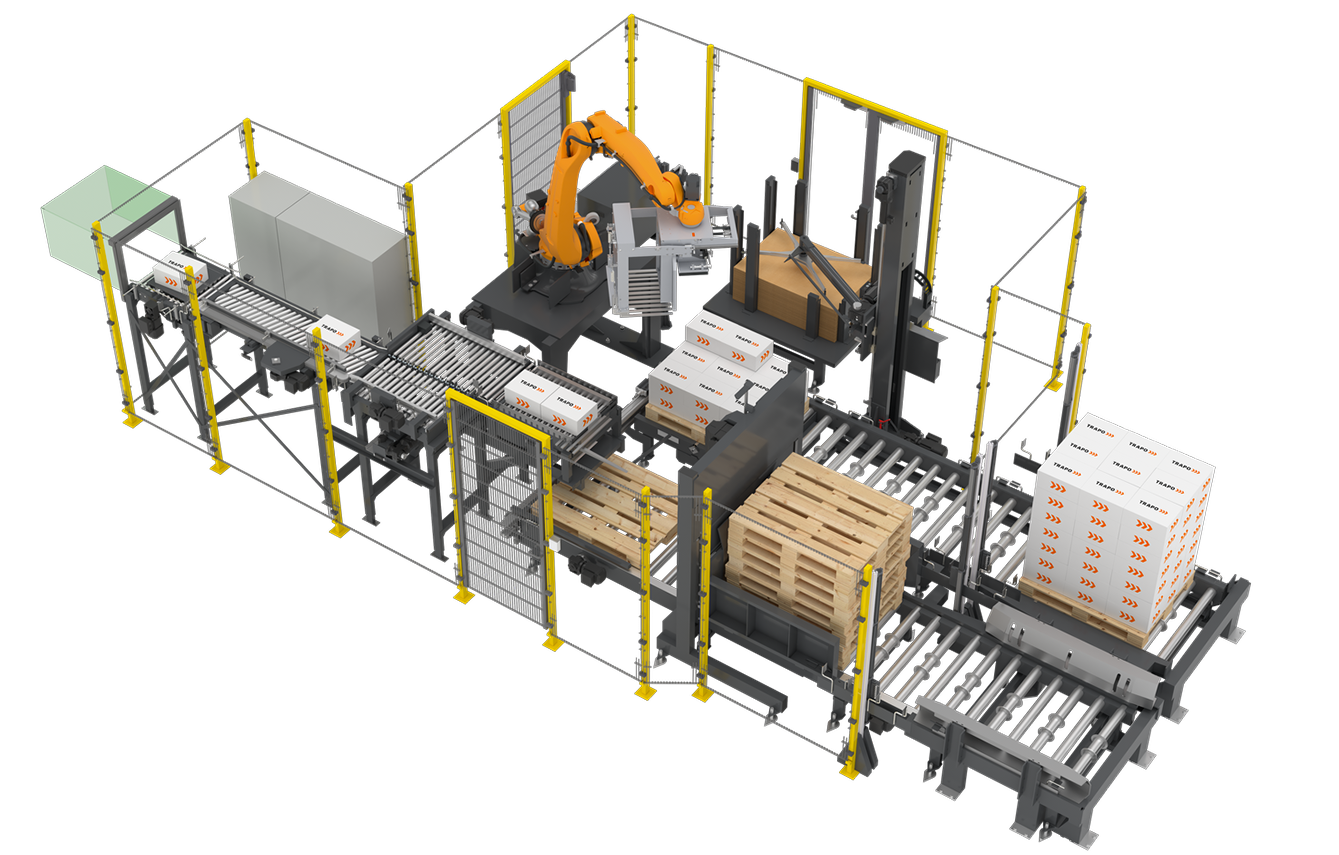

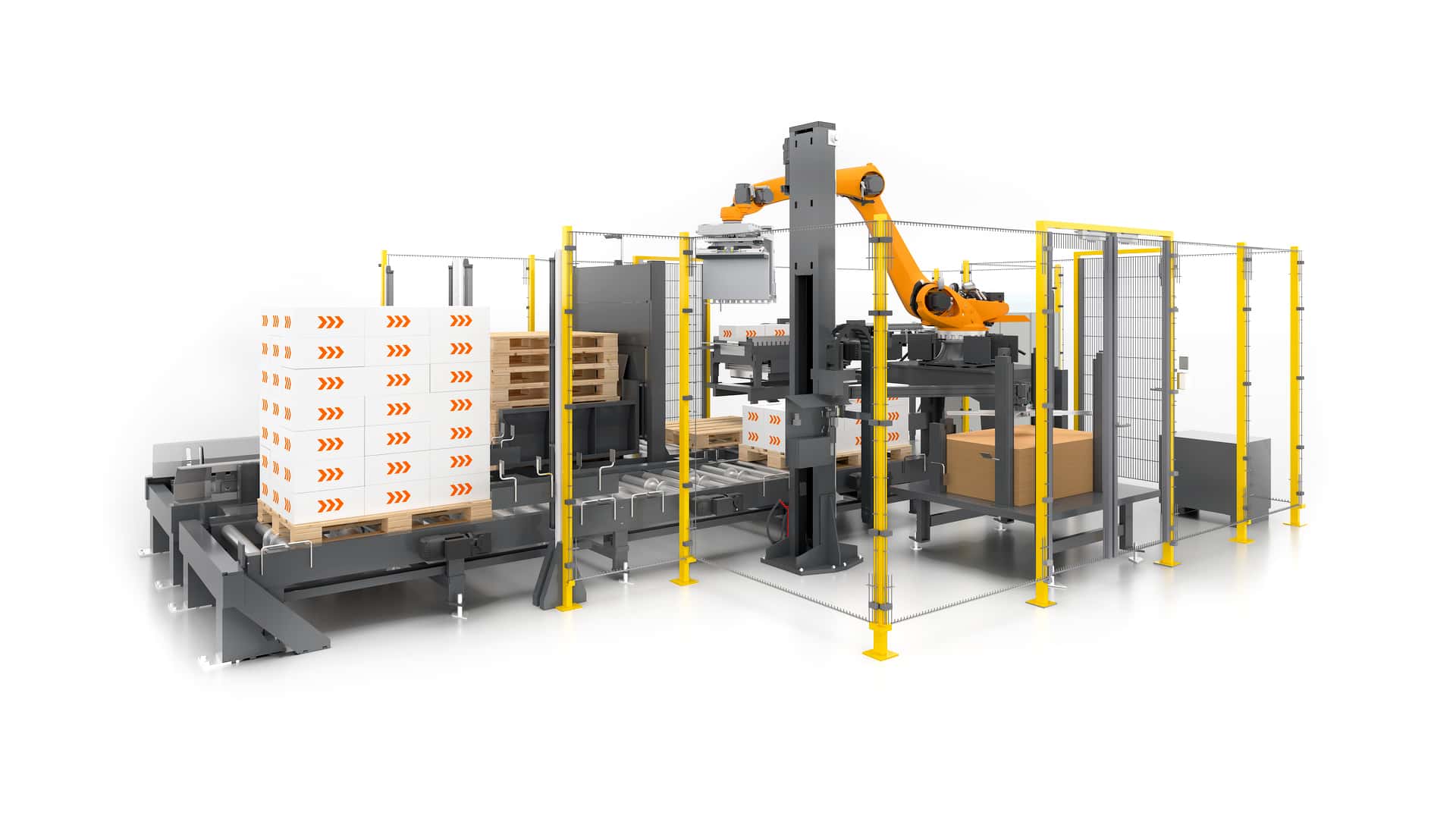

The TRAPO HRS in the U-Line version functions as an independent palletizing cell and can be installed in any production environment. The arrangement of loading and unloading conveyors on one side ensures short distances and smooth pallet handling.

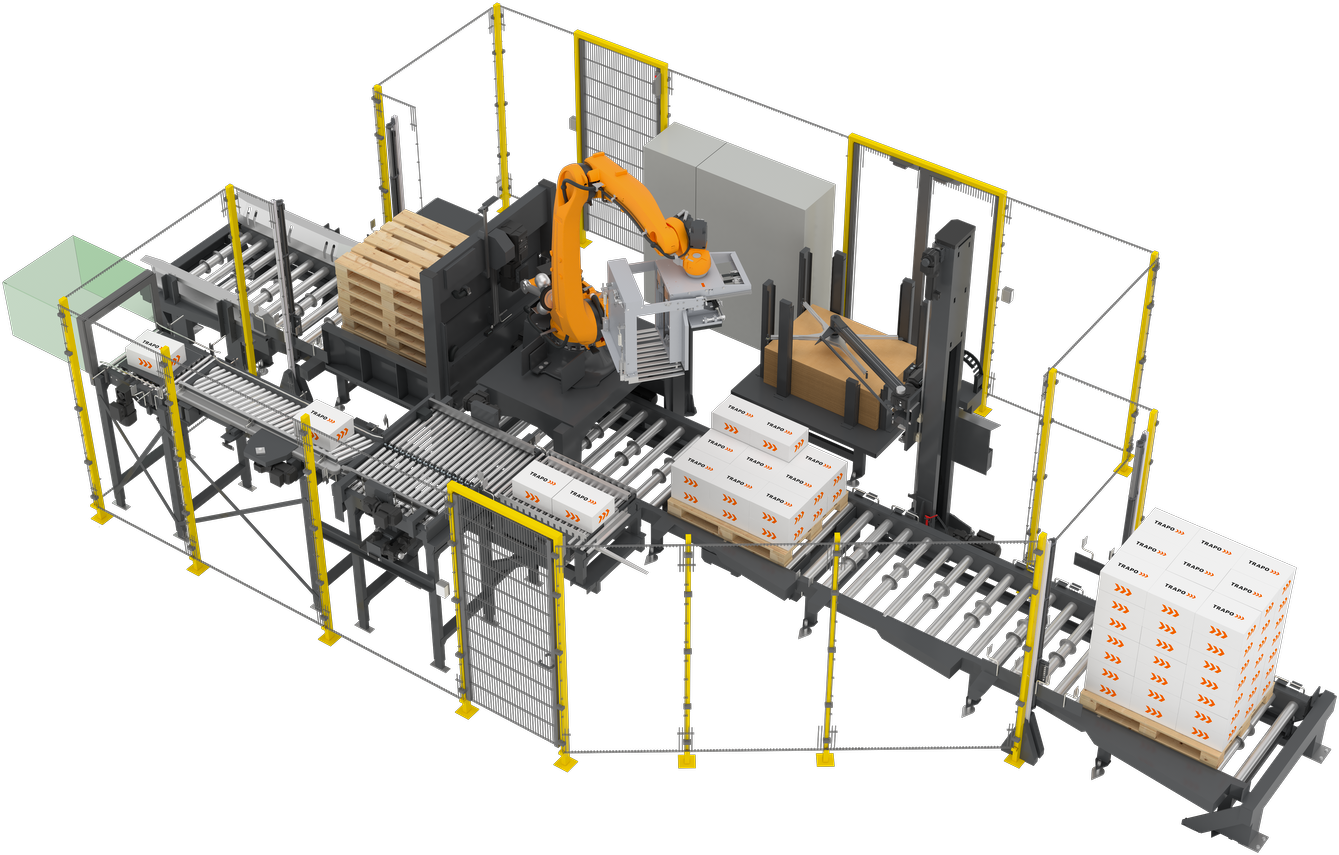

The TRAPO HRS in the Inline version is the preferred choice when the palletizing robot needs to be integrated into existing conveyor technology.
The Palletizing Robot in Action
Advantages at a Glance
For Euro or Industrial Pallets

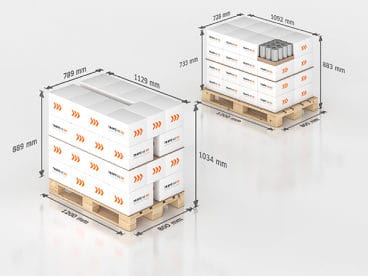

Configurable Layer Images
Optional Interlayer Handling
Various Robot Manufacturers and Grippers Possible
Additional Space for Full Pallets

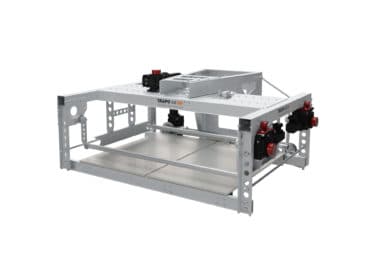

Custom Grippers – Perfectly Tailored to Your Product
Precise handling of objects is a central challenge for robotic systems. To meet this requirement, the TRAPO Technology Center develops and tests gripper techniques precisely tailored to the specific characteristics of the objects.
Fork Gripper
Retractable fork grippers are suitable for handling cartons, open containers, or bags.
The design of the fork gripper allows the products to be picked up directly from the roller conveyor on their underside.

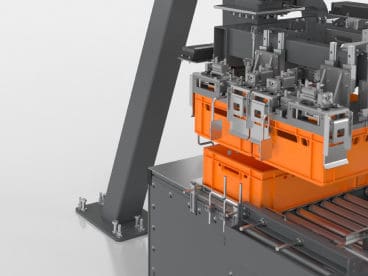

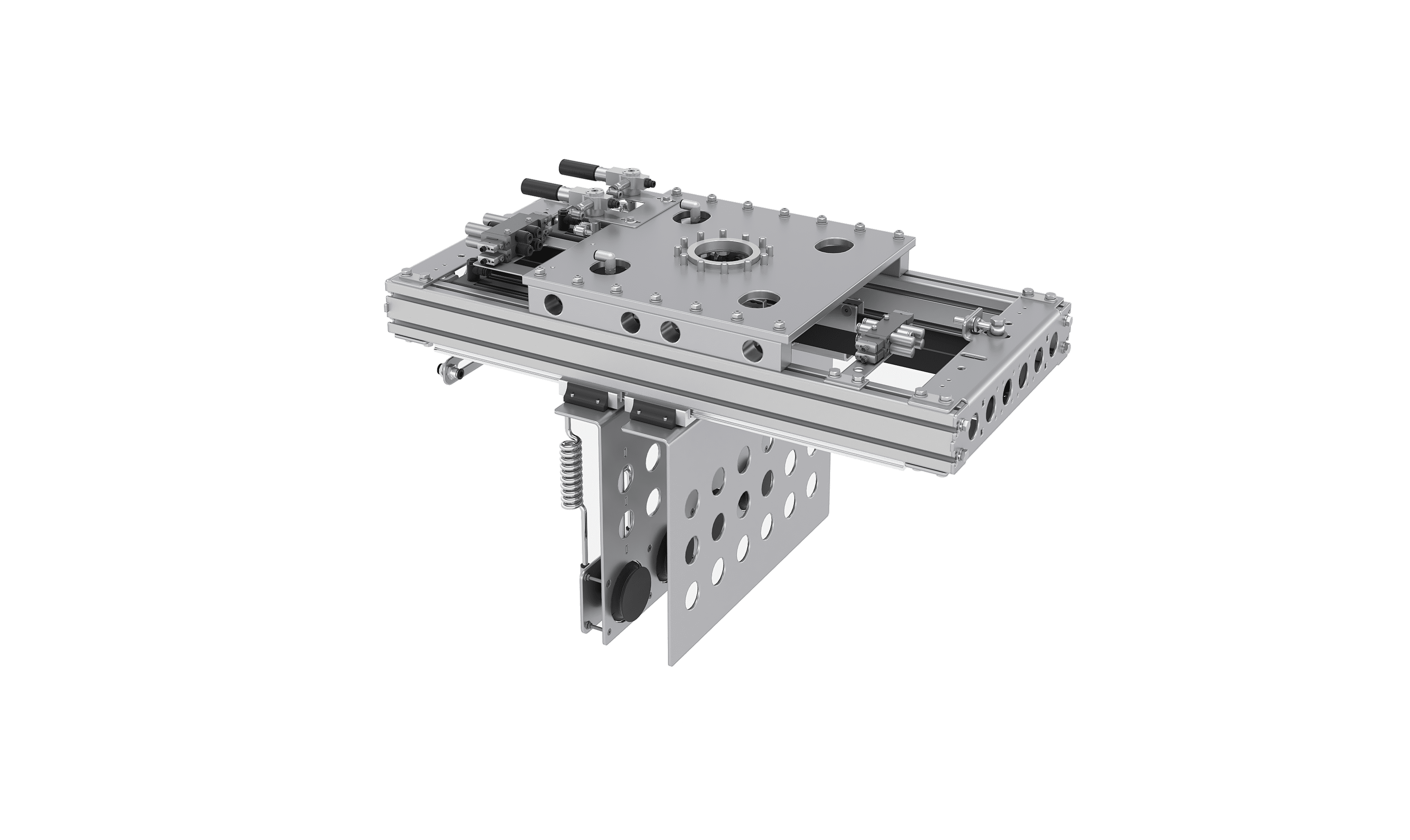

Clamp Gripper
Clamp grippers are suitable when products cannot be suctioned and are characterized by their reliable and gentle grip on the products.

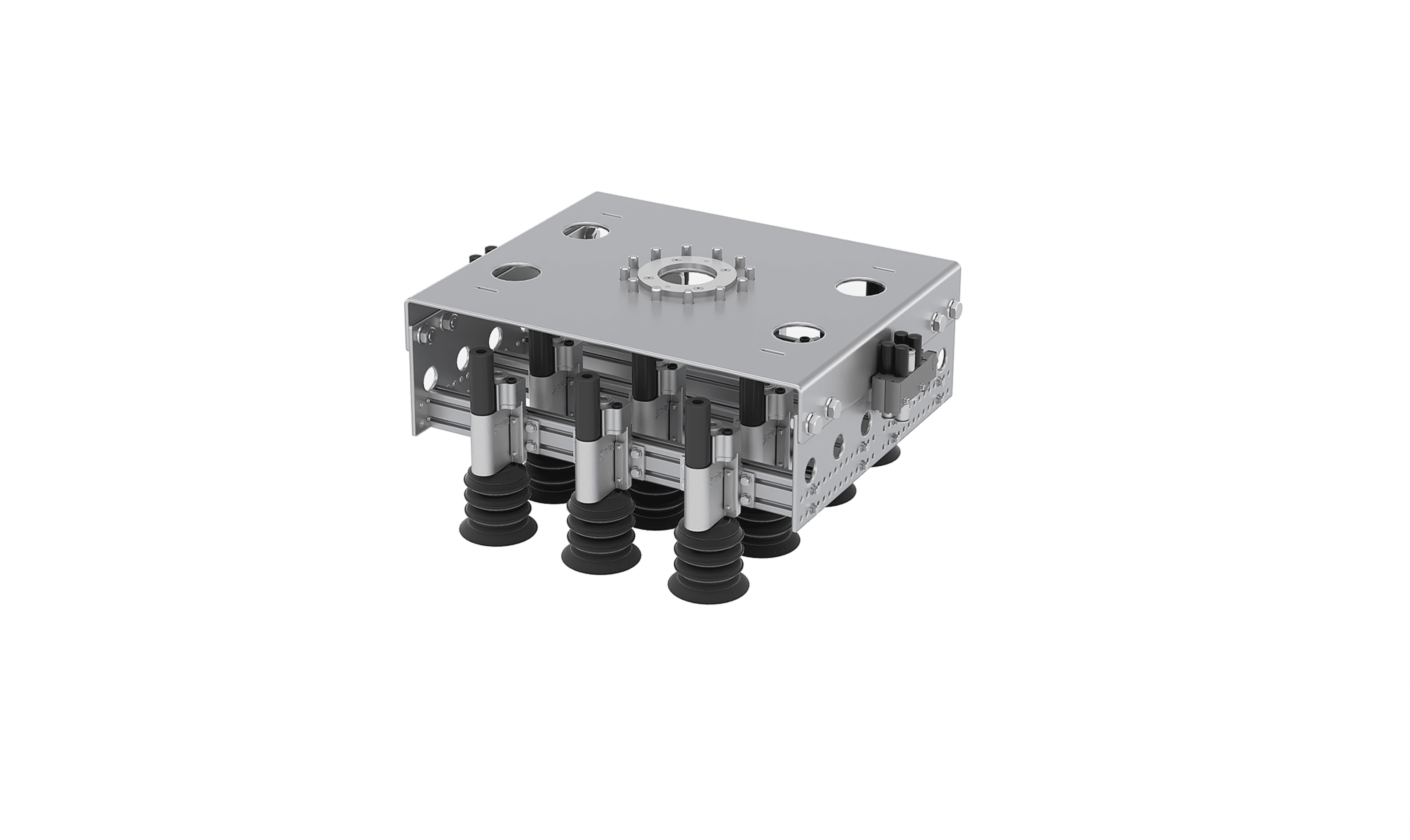

Suction Gripper
Smooth and airtight products are securely picked up and transported by suction grippers.
Facts and figures
HRS U-Line:
Length: 10133 mm
Width: 5816 mm
Height: 4100 mm
HRS Inline:
Length: 11760 mm
Width: 5800 mm
Height: 4100 mm
Höhe: 4100 mm
Description
Full pallet (Euro format)
Full pallet (industrial format)
Intermediate layers
Cardboard boxes
Dimensions (mm)
1200x1000x2000
1200x800x2000
min. 1000×700
min. 120x90x100
max. 500x400x400
Weight
1500 kg
1500 kg
max. 3 kg
max. 15 kg
Other
suitable for roller table
suitable for roller table
suckable
Description
Robot
Robot
Gripper
Gripper
Gripper
Option: Pallet magazine
Option: Intermediate layer handling
Option: Active product rotation
Option: Grouping
Variants
KUKA
ABB
Suction gripper
Clamping gripper
Fork gripper
Roller conveyor with magazine
Lifting rotary axis and gripper
Note
Load capacity depends on product
Load capacity depends on product
Max. Load capacity: 40 kg
for Euro and industrial format
Alternative to suction cups on the main gripper
max. 15 kg
Pusher for product conveyor technology
