High-performance palletizers for every need – customized to individual space requirements

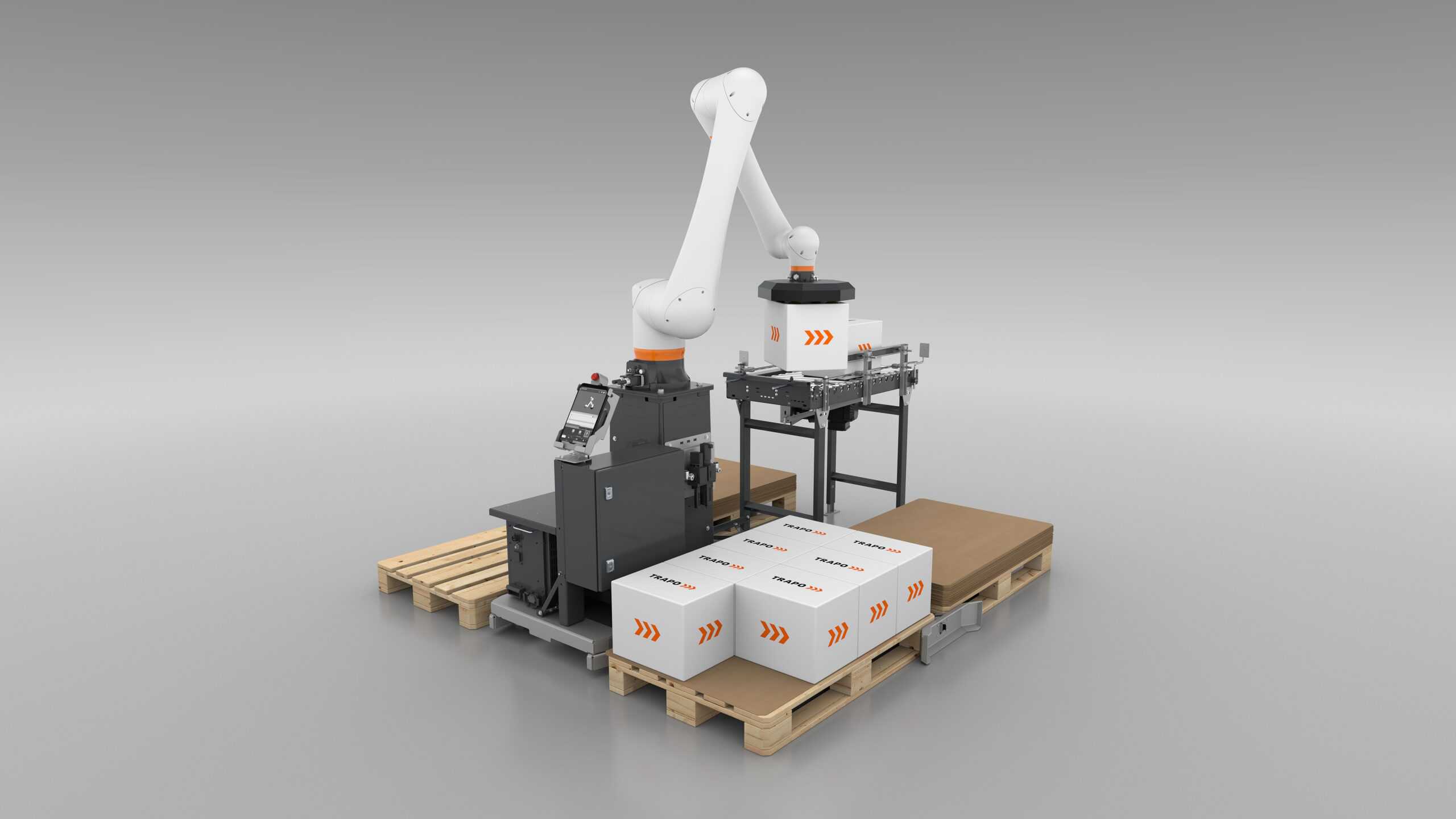

TRAPO Cobot Palletizer (TCP)
A small robot for big relief: The TRAPO Cobot Palletizer (TCP) fits through any door – the performance model for an easy entry into automated palletizing. Delivered on just two pallets, the mobile robot, which can operate as a “colleague” without a safety fence, is deployed wherever its palletizing power is needed. At the same time, TRAPO’s Cobot offers a compelling answer to the shortage of skilled workers: from now on, employees who previously handled manual palletizing can be reassigned to other areas of production!
Features
- Fully automatic palletizing, removal, and repositioning of palletized goods
- 230 V / 16A
- Robust construction
- Compact design / footprint with 2x Euro pallets including spacers = 2500 x 2750
- Capacity: up to 6 cartons/minute
- Gripper of the exhibition model: vacuum suction cup (supplied by compressed air or compressor, fed through the robot arm)
- Suitable for various containers, stacking, and layer patterns
- Output at floor level for easy removal by hand pallet truck
- Optional: Intermediate layer handling

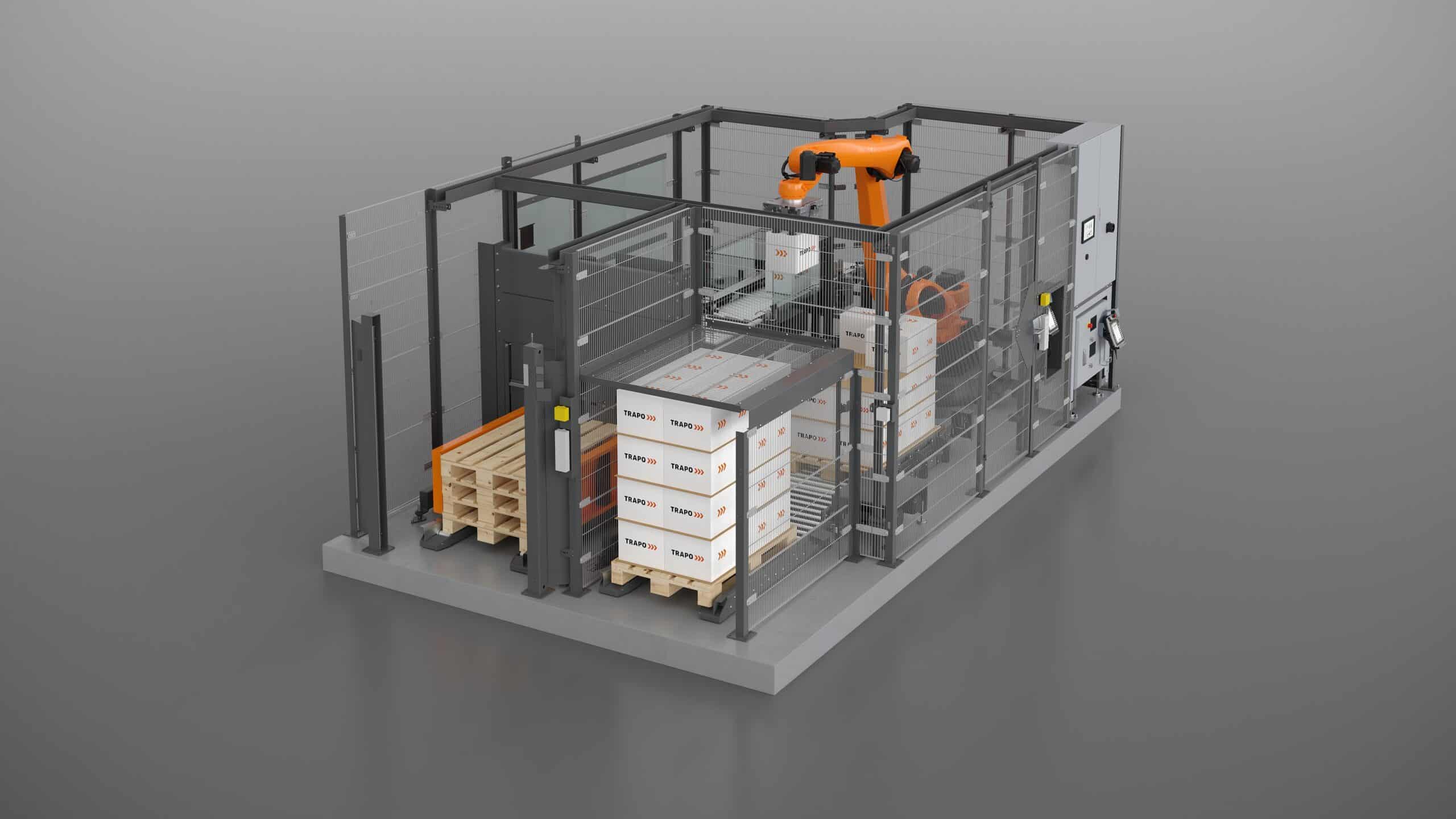

HRS Compact
The HRS Compact palletizer represents the next generation of articulated robots used for precise palletizing. The special feature: The HRS compact palletizes with a low overall height of 2.60 m and can therefore also be used in rooms with normal ceiling heights.
Features
- Fully automatic palletizing, removal, and repositioning of palletized goods
- Suitable as an end-of-line solution
- Intelligent control; easy-to-use HMI
- Robust construction
- Compact design / footprint 3600 mm x 6130 mm
- Capacity: up to 28 cartons/minute (with 4 products per cycle)
- Suitable for various containers and layer patterns
- Output at floor level for easy removal by hand pallet truck
- Optional: Intermediate layer handling
- For EURO pallets, optional industrial pallets

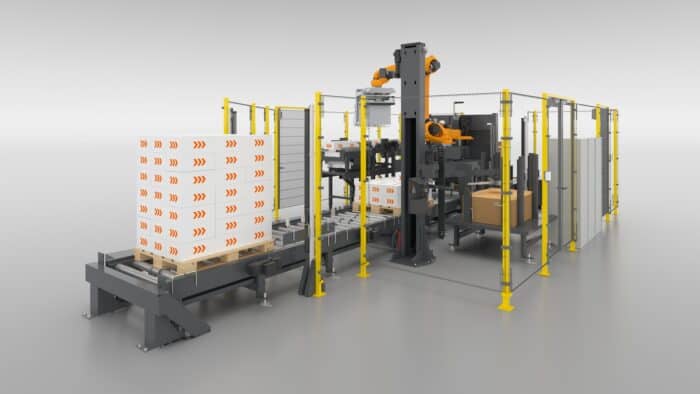

HRS Series Robots
HRS Series robots are the foundation for high-performance palletizing requirements.
Features
- Fully automatic palletizing, removal, and repositioning of palletized goods
- 400 V / 33A
- Suitable as an end-of-line solution or for integration with conveyor systems
- Intelligent control; easy-to-use HMI
- Robust construction
- Footprint 5800 mm x 11760 mm
- Capacity: up to 33 cartons/minute (with 4 products per cycle)
- Gripper of the exhibition model: equipped with a fork gripper
- Suitable for various containers and layer patterns
- Optional: Rotating station / intermediate layer handling / empty pallet magazine
- For EURO and industrial pallets
